- Roadmachine 01 AMP ONE vs Checkpoint+ SL 5

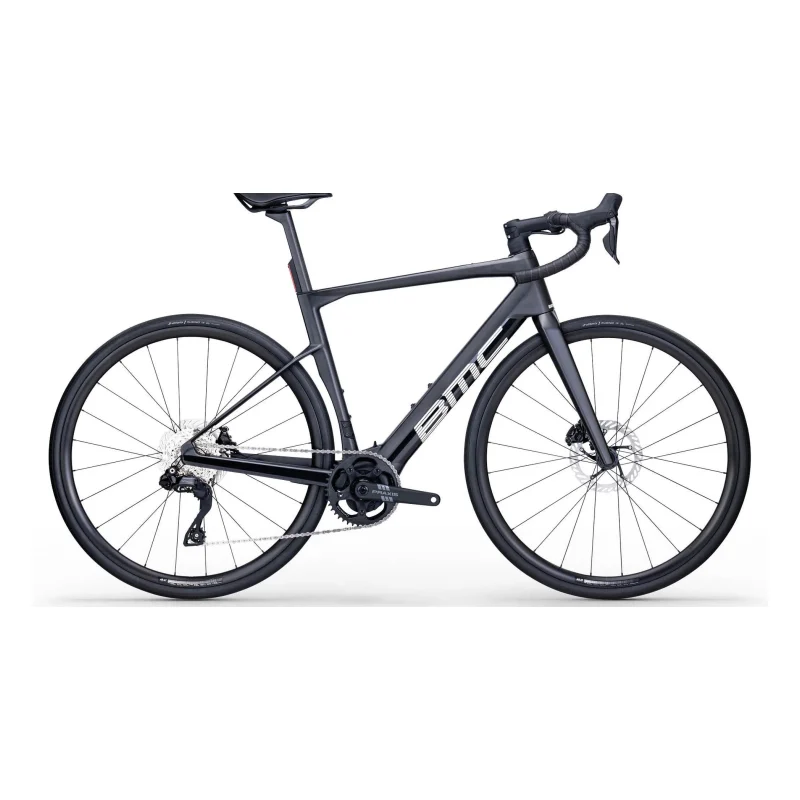

BMC Roadmachine 01 AMP ONE vs Trek Checkpoint+ SL 5
En qué gana Roadmachine 01 AMP ONE (2) y dónde se impone Checkpoint+ SL 5 (2) — todas las características lado a lado.
vs
6,3Marco y peso5,7
5,1Componentes5,6
Geometría del cuadro
Comparativa de geometría
Roadmachine 01 AMP ONECheckpoint+ SL 5
Geometría del fabricante por talla, en mm y grados. Stack y reach describen la posición: más stack — más erguida, más reach — más estirada.
Roadmachine 01 AMP ONE
| Talla | Stack | Reach | Tubo superior | Tubo de sillín | Ángulo de dirección | Ángulo de sillín | Distancia entre ejes | Vainas | Caída del pedalier | Altura libre |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 525 | 370 | 519 | 420 | 71,4° | 74,2° | 987 | 420 | 75 | 728 |
| 51 | 550 | 379 | 535 | 460 | 71,4° | 74,2° | 1.005 | 420 | 75 | 755 |
| 54 | 570 | 383 | 544 | 500 | 72,2° | 74,2° | 1.002 | 420 | 75 | 786 |
| 56 | 595 | 388 | 556 | 525 | 72,2° | 74,2° | 1.015 | 420 | 75 | 810 |
| 58 | 620 | 393 | 568 | 545 | 72,2° | 74,2° | 1.028 | 420 | 75 | 829 |
| 61 | 645 | 398 | 581 | 575 | 72,2° | 74,2° | 1.041 | 420 | 75 | 850 |
Checkpoint+ SL 5
| Talla | Stack | Reach | Tubo superior | Tubo de sillín | Ángulo de dirección | Ángulo de sillín | Distancia entre ejes | Vainas | Caída del pedalier | Altura libre |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 380 | 536 | 445 | 71° | 72,7° | 1.023 | 440 | 76 | 746 |
| S | 556 | 386 | 547 | 480 | 71,4° | 73° | 1.032 | 440 | 76 | 772 |
| M | 579 | 391 | 566 | 505 | 71,6° | 72,8° | 1.044 | 440 | 76 | 799 |
| ML | 601 | 397 | 578 | 530 | 72° | 72,8° | 1.052 | 440 | 76 | 813 |
| L | 620 | 402 | 589 | 550 | 72,1° | 72,8° | 1.063 | 440 | 76 | 837 |
| XL | 640 | 408 | 601 | 575 | 72,4° | 72,8° | 1.072 | 440 | 76 | 861 |
¿Por qué Roadmachine 01 AMP ONE es mejor que Checkpoint+ SL 5?
- Cambios electrónicosSí · Checkpoint+ SL 5: No
- Disco delantero180 mm vs 160 mm+12 %
¿Por qué Checkpoint+ SL 5 es mejor que Roadmachine 01 AMP ONE?
- Gama del grupo (1–5)3/5 vs 4/5+33 %
- Peso máximo total120 kg vs 125 kg+4 %
Características
Lado a lado
| Marco y talla | ||
| Material del marco | Carbono | Carbono |
| Marco | Roadmachine 01 AMP, 01 Premium Carbon with Tuned Compliance Concept Endurance, Integrated Battery, Internal Cable Routing, ICS Technology Stealth Cable Routing, Fender Mounts, Flat Mount Disc, 12 x 14 | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle |
| Peso | — | 13,8 kg |
| Peso máximo total | 120 kg | 125 kg |
| Tallas | 47, 51, 54, 56, 58, 61 | XS, S, M, ML, L, XL |
| Colores | — | Fjord Blue/Cobalt Blue, Matte Bronze Age/Dark Web |
| Año del modelo | 2027 | 2027 |
| Uso | Ruta endurance | Gravel |
| Suspensión | ||
| Suspensión | Rígida | Rígida |
| Horquilla | Roadmachine 01 AMP, 01 Premium Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, Flat Mount Disc, 12 x 100mm Thru-Axle | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Tija telescópica | No | No |
| Transmisión | ||
| Grupo | 105 Di2 | GRX 822 |
| Marca del grupo | Shimano | Shimano |
| Gama del grupo (1–5) | 3/5 | 4/5 |
| Cambios electrónicos | Sí | No |
| Velocidades (atrás) | 12 | 12 |
| Platos | 1 | — |
| Rango del casete | — | 10–51T |
| Desviador trasero | SHIMANO 105 Di2 (RD-R7150) | Shimano GRX RX822, 51T max cog |
| Mandos de cambio | SHIMANO 105 Di2 (ST-R7170) | Shimano GRX RX820, 12 speed |
| Casete | SHIMANO (CS-HG710) | Shimano XT M8100, 10-51, 12 speed |
| Bielas | Praxis Type-4 Alloy Road eCrank, 49mm chainline | Praxis Alloy, 170mm length |
| Frenos | ||
| Tipo de freno | Disco hidráulico | — |
| Disco delantero | 180 mm | 160 mm |
| Disco trasero | 180 mm | 160 mm |
| Ruedas y llantas | ||
| Tamaño de rueda | 29″ / 28″ (700c) | 29″ / 28″ (700c) |
| Llantas (neumáticos) | Vittoria Rubino V, Tube type, 34mm | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Ancho de llanta | 34 mm | — |
| Ruedas | AR 27, Tubeless Ready, 27mm | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
| Tubeless ready | Sí | Sí |
| Sistema eléctrico | ||
| Marca del motor | TQ | TQ |
| Motor | TQ-HPR60 Drive Unit | TQ Remote | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
| Posición del motor | Motor central | Motor central |
| Torque del motor | — | 60 Nm |
| Potencia máxima | — | 250 W |
| Capacidad de batería | 360 Wh | 360 Wh |
| Pantalla / mando | TQ Grafic color Display, 2" O-LED, Bluetooth / ANT+ | TQ color LED display with Bluetooth & ANT+ connectivity |
| Equipamiento y componentes | ||
| Tija | Roadmachine 01 Premium Carbon D-Shaped Seatpost, 15mm Offset, D-Fender Compatible | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Sillín | Selle Italia Model X Greentech, FeC Alloy Rail, 145mm | Verse Short Comp, steel rails, 145mm width |
| Manubrio | BMC HB D4 03, 0, 12, Alloy 6061, Endurance Geometry, 125mm drop, 70mm reach, 12° flare | Bontrager Elite Gravel, alloy, 42cm width |
| Potencia | BMC RSM 01, Integrated Cockpit System Technology | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
