- Revolt Advanced SL 0 vs SILEX 4000

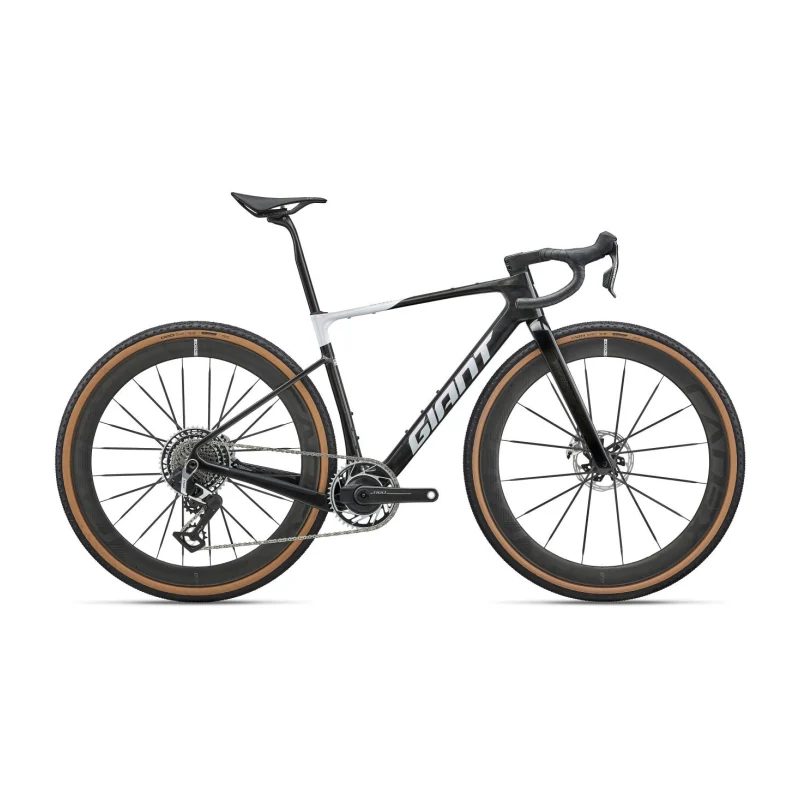

Giant Revolt Advanced SL 0 vs Merida SILEX 4000
En qué gana Revolt Advanced SL 0 (3) y dónde se impone SILEX 4000 (1) — todas las características lado a lado.
9,3Componentes4,9
Geometría del cuadro
Comparativa de geometría
Revolt Advanced SL 0SILEX 4000
Geometría del fabricante por talla, en mm y grados. Stack y reach describen la posición: más stack — más erguida, más reach — más estirada.
Revolt Advanced SL 0
| Talla | Stack | Reach | Tubo superior | Tubo de sillín | Ángulo de dirección | Ángulo de sillín | Distancia entre ejes | Vainas | Caída del pedalier | Altura libre |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 389 | 530 | 430 | 70,5° | 75° | 1.026 | 433 | 80 | 726 |
| S | 536 | 391 | 540 | 450 | 71° | 74,5° | 1.027 | 433 | 80 | 743 |
| M | 557 | 395 | 550 | 470 | 71,5° | 74,5° | 1.033 | 433 | 80 | 762 |
| ML | 573 | 401 | 565 | 490 | 72° | 74° | 1.039 | 433 | 80 | 779 |
| L | 592 | 410 | 580 | 510 | 72° | 74° | 1.055 | 433 | 80 | 798 |
| XL | 616 | 413 | 590 | 530 | 72° | 74° | 1.066 | 433 | 80 | 818 |
SILEX 4000
| Talla | Stack | Reach | Tubo superior | Tubo de sillín | Ángulo de dirección | Ángulo de sillín | Distancia entre ejes | Vainas | Caída del pedalier | Altura libre |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 549 | 378 | 530 | 410 | 69,5° | 74,5° | 1.031 | 430 | 75 | 707 |
| XS | 570 | 392 | 550 | 440 | 69,5° | 74,5° | 1.048 | 430 | 75 | 734 |
| S | 588 | 402 | 565 | 470 | 69,5° | 74,5° | 1.065 | 430 | 75 | 771 |
| M | 607 | 412 | 580 | 500 | 69,5° | 74,5° | 1.082 | 430 | 75 | 798 |
| L | 626 | 426 | 600 | 530 | 69,5° | 74,5° | 1.104 | 430 | 75 | 825 |
| XL | 645 | 441 | 620 | 560 | 69,5° | 74,5° | 1.126 | 430 | 75 | 852 |
¿Por qué Revolt Advanced SL 0 es mejor que SILEX 4000?
- Gama del grupo (1–5)5/5 vs 2/52,5×
- Cambios electrónicosSí · SILEX 4000: No
- Velocidades (atrás)13 vs 12+8 %
¿Por qué SILEX 4000 es mejor que Revolt Advanced SL 0?
- Disco delantero160 mm vs 180 mm+12 %
Características
Lado a lado
| Marco y talla | ||
| Material del marco | Carbono | Carbono |
| Marco | Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout | SILEX CF2 II, material: carbon, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard |
| Tallas | XS, S, M, ML, L, XL | XXS, XS, S, M, L, XL |
| Colores | Raw Carbon, Prism Mist | Wild Honey (Black) |
| Año del modelo | 2027 | 2027 |
| Uso | Gravel | Gravel |
| Suspensión | ||
| Suspensión | Rígida | Rígida |
| Horquilla | Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc | MERIDA SILEX II CF2, Tapered, material: carbon, 700x47C max. wheelsize |
| Tija telescópica | No | No |
| Transmisión | ||
| Grupo | Red XPLR AXS | GRX 400 |
| Marca del grupo | SRAM | Shimano |
| Gama del grupo (1–5) | 5/5 | 2/5 |
| Cambios electrónicos | Sí | No |
| Velocidades (atrás) | 13 | 12 |
| Platos | 1 | 2 |
| Rango del casete | 10–46T | 11–36T |
| Desviador trasero | SRAM RED XPLR AXS E1 | Shimano GRX400, mechanical, 12 speed |
| Mandos de cambio | SRAM RED XPLR AXS E1, 1x13 | Shimano GRX 400, disc |
| Casete | SRAM RED E1, 13-speed, 10x46 | Shimano Deore HG50, 11-36T, 10 speed |
| Bielas | SRAM RED XPLR AXS with power meter, 44t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm | Shimano GRX600, 46/30T, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL |
| Potenciómetro | Sí | — |
| Frenos | ||
| Tipo de freno | Disco hidráulico | Disco hidráulico |
| Frenos | SRAM RED AXS E1 hydraulic, SRAM PaceLine X | Shimano GRX400 / Shimano GRX 400, 2 piston, Hydraulic |
| Disco delantero | 160 mm | 180 mm |
| Disco trasero | 160 mm | 180 mm |
| Ruedas y llantas | ||
| Tamaño de rueda | 29″ / 28″ (700c) | 29″ / 28″ (700c) |
| Llantas (neumáticos) | CADEX GXR, 700x45c, tubeless | G-ONE RX Performance Line, RaceGuard TLR, 700x45C |
| Ancho de llanta | 45 mm | 45 mm |
| Ruedas | CADEX Max GXR WheelSystem, hookless, carbon [F] 50mm, [R] 50mm | Shimano TC500 / Shimano TC500-HM, 100x12mm width front hub, 28 spoke holes, Centerlock, width rear hub, 28 spoke holes, Centerlock |
| Rines | Carbono | — |
| Tubeless ready | Sí | Sí |
| Equipamiento y componentes | ||
| Tija | Giant Contact SLR XR D-Fuse, composite, 20mm offset | MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon |
| Sillín | CADEX Amp | MERIDA COMP SL, 25% recycled material, V-mount |
| Manubrio | Giant Contact SLR XR Integrated XS:420/380mm, S:420/380mm, M:440/400mm, M/L:440/400mm, L:440/400mm, XL:460/420mm | MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S) , 420mm (M) , 440mm (L/XL) |
| Potencia | Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110 | MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 80mm all sizes |
