- ONE-SIXTY FR 400 vs Stumpjumper 15 EVO Expert
Merida ONE-SIXTY FR 400 vs Specialized Stumpjumper 15 EVO Expert
En qué gana ONE-SIXTY FR 400 (2) y dónde se impone Stumpjumper 15 EVO Expert (4) — todas las características lado a lado.
vs
3,8Componentes5,1
7,4Suspensión6,8
Geometría del cuadro
Comparativa de geometría
ONE-SIXTY FR 400Stumpjumper 15 EVO Expert
Geometría del fabricante por talla, en mm y grados. Stack y reach describen la posición: más stack — más erguida, más reach — más estirada.
ONE-SIXTY FR 400
| Talla | Stack | Reach | Tubo superior | Tubo de sillín | Ángulo de dirección | Ángulo de sillín | Distancia entre ejes | Vainas | Caída del pedalier | Altura libre |
|---|---|---|---|---|---|---|---|---|---|---|
| XShort | 615 | 415 | 535 | 400 | 64° | 79° | 1.188 | 434 | 7 | 735 |
| Short | 615 | 442 | 562 | 410 | 64° | 79° | 1.215 | 434 | 7 | 740 |
| Mid | 615 | 470 | 589 | 425 | 64° | 79° | 1.242 | 434 | 7 | 743 |
| Long | 625 | 498 | 621 | 445 | 64° | 79° | 1.275 | 438 | 28 | 740 |
| XLong | 638 | 525 | 653 | 470 | 64° | 79° | 1.308 | 438 | 28 | 735 |

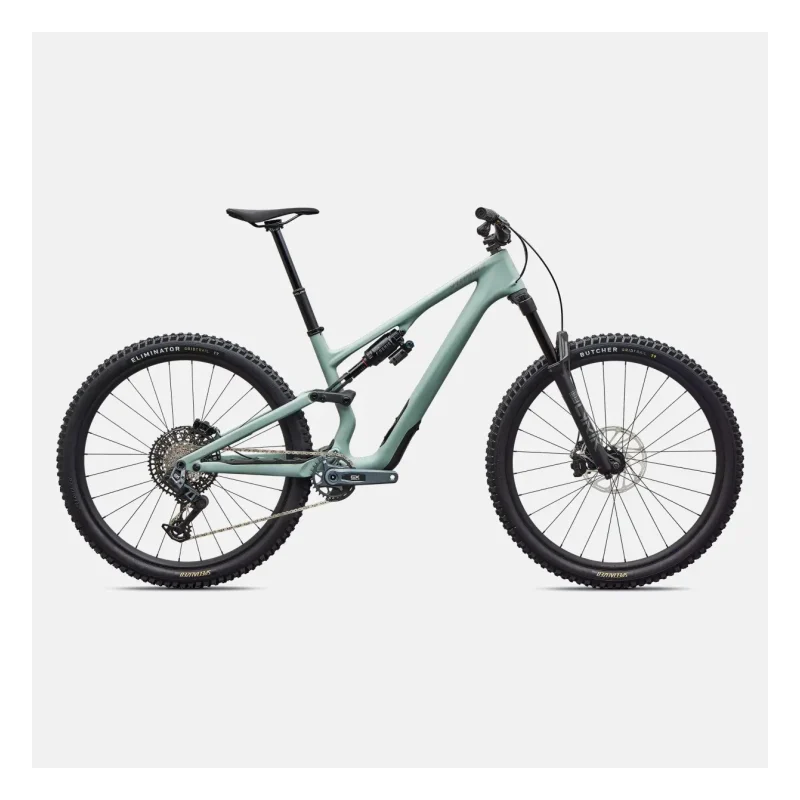

Stumpjumper 15 EVO Expert
| Talla | Stack | Reach | Tubo superior | Tubo de sillín | Ángulo de dirección | Ángulo de sillín | Distancia entre ejes | Vainas | Caída del pedalier | Altura libre |
|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 611 | 400 | 542 | 385 | 64° | 77,7° | 1.153 | 430 | 38 | 738 |
| S2 | 621 | 420 | 574 | 385 | 64° | 76,5° | 1.186 | 432 | 35 | 751 |
| S3 | 630 | 445 | 596 | 405 | 64° | 76,5° | 1.217 | 435 | 35 | 745 |
| S4 | 644 | 470 | 625 | 425 | 64° | 76° | 1.249 | 435 | 35 | 745 |
| S5 | 658 | 495 | 649 | 445 | 64° | 76° | 1.290 | 445 | 35 | 745 |
| S6 | 671 | 525 | 678 | 465 | 64° | 76° | 1.327 | 445 | 35 | 751 |
¿Por qué ONE-SIXTY FR 400 es mejor que Stumpjumper 15 EVO Expert?
- Recorrido trasero171 mm vs 145 mm+18 %
- Recorrido delantero180 mm vs 160 mm+12 %
¿Por qué Stumpjumper 15 EVO Expert es mejor que ONE-SIXTY FR 400?
- Gama del grupo (1–5)2/5 vs 3/5+50 %
- Material del marcoAluminio vs Carbono
- Tija telescópicaNo · ONE-SIXTY FR 400: Sí
- Cambios electrónicosNo · ONE-SIXTY FR 400: Sí
Características
Lado a lado
| Marco y talla | ||
| Material del marco | Aluminio | Carbono |
| Marco | ONE-SIXTY LITE III, 171mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard | FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bea |
| Peso | — | 15,3 kg |
| Tallas | XShort, Short, Mid, Long, XLong | S1, S2, S3, S4, S5, S6 |
| Colores | Deep Forest Green (White) | — |
| Año del modelo | 2027 | 2027 |
| Uso | Enduro | Trail |
| Suspensión | ||
| Suspensión | Doble suspensión | Doble suspensión |
| Horquilla | DVO Onyx 38 Core, Air, 180mm suspension travel, Tapered, 44 mm fork offset, 29x2.60" max. wheelsize | Rockshox Lyrik Select+, 29" 160mm (S2-S6) |
| Recorrido delantero | 180 mm | 160 mm |
| Amortiguador trasero | DVO Jade X core, coil, spring rate: XS 300 lbs, S 350 lbs, M: 400 lbs, L: 450, XL: 500 | All New Rockshox Super Deluxe Select + GENIE, RCT damper with (LSC) Low Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm |
| Recorrido trasero | 171 mm | 145 mm |
| Tija telescópica | No | Sí |
| Recorrido de la tija | — | 213 mm |
| Transmisión | ||
| Grupo | CUES | GX Eagle Transmission |
| Marca del grupo | Shimano | SRAM |
| Gama del grupo (1–5) | 2/5 | 3/5 |
| Cambios electrónicos | No | Sí |
| Velocidades (atrás) | 12 | 12 |
| Platos | 1 | 1 |
| Rango del casete | 11–48T | 10–52T |
| Desviador trasero | Shimano CUES U6000, GS, 12 speed | SRAM GX Eagle AXS Transmission |
| Mandos de cambio | Shimano CUES U6000 | SRAM AXS Pod Controller w/discrete clamp |
| Casete | Shimano LG300, 11-48T, 10 speed | SRAM XG-1275 Transmission 12-Speed 10-52t |
| Bielas | MERIDA Expert TR II, 32T, 165 mm for all sizes | SRAM GX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline |
| Frenos | ||
| Tipo de freno | Disco hidráulico | Disco hidráulico |
| Frenos | Sram DB4, 4 piston, hydraulic | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm Centerline |
| Disco delantero | 203 mm | 200 mm |
| Disco trasero | 200 mm | 180 mm |
| Ruedas y llantas | ||
| Tamaño de rueda | Mixta 29″/27,5″ | Mixta 29″/27,5″ |
| Llantas (neumáticos) | Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft Compund | Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4 |
| Ancho de llanta | 61 mm | 61 mm |
| Ruedas | Novatec SL-Team D041SB-B15 / Novatec SL-Team D952RSB, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, DT Swiss ratchet compatible, 32 | Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 28h, Sapim Force Spokes |
| Rines | Aluminio | Aluminio |
| Tubeless ready | Sí | Sí |
| Equipamiento y componentes | ||
| Tija | MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost - MID: 170mm travel seatpost - LONG: 200mm travel sea | Bike Yoke, Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm |
| Sillín | MERIDA COMP SL, 25% recycled material, V-mount | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Manubrio | MERIDA COMP TR II, material: aluminium, 780mm width, 35mm rise | Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise |
| Potencia | MERIDA COMP TR, material: aluminium, 35mm diameter, 0° stem angle, 40 mm | Specialized, 35mm Clamp, 35mm Reach |
