- Crafty Carbon S vs Wild TR M20

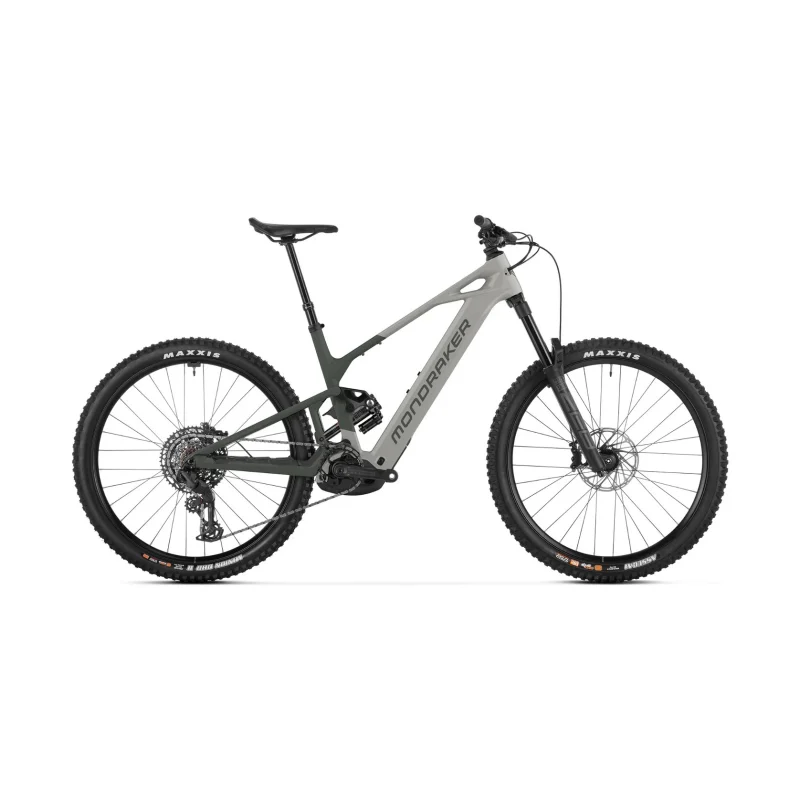

Mondraker Crafty Carbon S vs Orbea Wild TR M20
En qué gana Crafty Carbon S (2) y dónde se impone Wild TR M20 (1) — todas las características lado a lado.
vs
3,4Componentes4,8
7,1Suspensión5,6
¿Por qué Crafty Carbon S es mejor que Wild TR M20?
- Capacidad de batería800 Wh vs 750 Wh+7 %
- Recorrido delantero160 mm vs 150 mm+7 %
¿Por qué Wild TR M20 es mejor que Crafty Carbon S?
- Tipo de frenoFreno de llanta vs Disco hidráulico
Características
Lado a lado
| Marco y talla | ||
| Material del marco | Carbono | Carbono |
| Marco | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, t | Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148 (carbon) |
| Peso | 24,3 kg | — |
| Tallas | S, M, M/L, L, XL | S, M, L, XL |
| Colores | Fog Grey, Overland Green | Fuel C. View - Titan Blue (Gloss), White Chic - Tanzanite Evo C. View (Gloss), Desert Rose (Matt) - Burning Ashes C. View (Gloss) |
| Año del modelo | 2027 | 2027 |
| Uso | Enduro | Trail |
| Suspensión | ||
| Suspensión | Doble suspensión | Doble suspensión |
| Horquilla | RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, external rebound, air preload | Fox 36 Float Performance 150, Grip 3-Pos, 15x110 |
| Recorrido delantero | 160 mm | 150 mm |
| Amortiguador trasero | Fox Float-X LV Performance, 185x55mm. Settings: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings | Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm |
| Recorrido trasero | 150 mm | 150 mm |
| Tija telescópica | Sí | — |
| Recorrido de la tija | 200 mm | — |
| Transmisión | ||
| Grupo | — | Deore |
| Marca del grupo | — | Shimano |
| Gama del grupo (1–5) | — | 2/5 |
| Cambios electrónicos | — | No |
| Velocidades (atrás) | 12 | 12 |
| Platos | 1 | — |
| Rango del casete | 10–52T | 10–51T |
| Desviador trasero | SRAM 70 Eagle, T-Type, 12s | Shimano Deore M7200 SGS Shadow Plus |
| Mandos de cambio | SRAM Trigger 70, 12s, T-Type actuation | Shimano Deore M6200 I-Spec EV |
| Casete | SRAM XS-1270, 10-52T, 12s | Shimano CS-M6200 10-51t 12-Speed |
| Bielas | e*thirteen Helix Core E*Spec Plus, 160mm all sizes | e*thirteen Helix Core |
| Frenos | ||
| Tipo de freno | Freno de llanta | Disco hidráulico |
| Frenos | SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece | Shimano MT420 Hydraulic Disc |
| Ruedas y llantas | ||
| Tamaño de rueda | 29″ / 28″ (700c) | 29″ / 28″ (700c) |
| Llantas (neumáticos) | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead | Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR |
| Ancho de llanta | — | 64 mm |
| Ruedas | WTB Sportterra Tough, 6061 welded aluminium, 30mm internal width, tubeless ready, 28 spokes | Race Face AR 30c Tubeless Ready |
| Rines | Aluminio | — |
| Tubeless ready | Sí | Sí |
| Sistema eléctrico | ||
| Marca del motor | Bosch | Bosch |
| Motor | Bosch Performance Line CX (25km/h) Smart System (BDU384Y) | Bosch Performance Line CX BDU3843 |
| Posición del motor | Motor central | Motor central |
| Capacidad de batería | 800 Wh | 750 Wh |
| Asistencia hasta | 25 km/h | — |
| Pantalla / mando | Kiox 400C / Bosch Mini Remote | Bosch System Controller BRC3100 |
| Equipamiento y componentes | ||
| Tija | X-Fusion Manic, diameter 31.6mm, 1x remote lever. S: 361x125mm, M: 425x150mm, M/L: 469x170mm, L: 521x190mm, XL: 531x200mm | — |
| Sillín | Ergon SM-10 | Fizik Aidon 208x145mm manganese rail |
| Manubrio | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL: 38mm rise | OC Mountain Control MC30, Rise20, Width 800 |
| Potencia | Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore | OC Mountain Control MC21, 0° |
