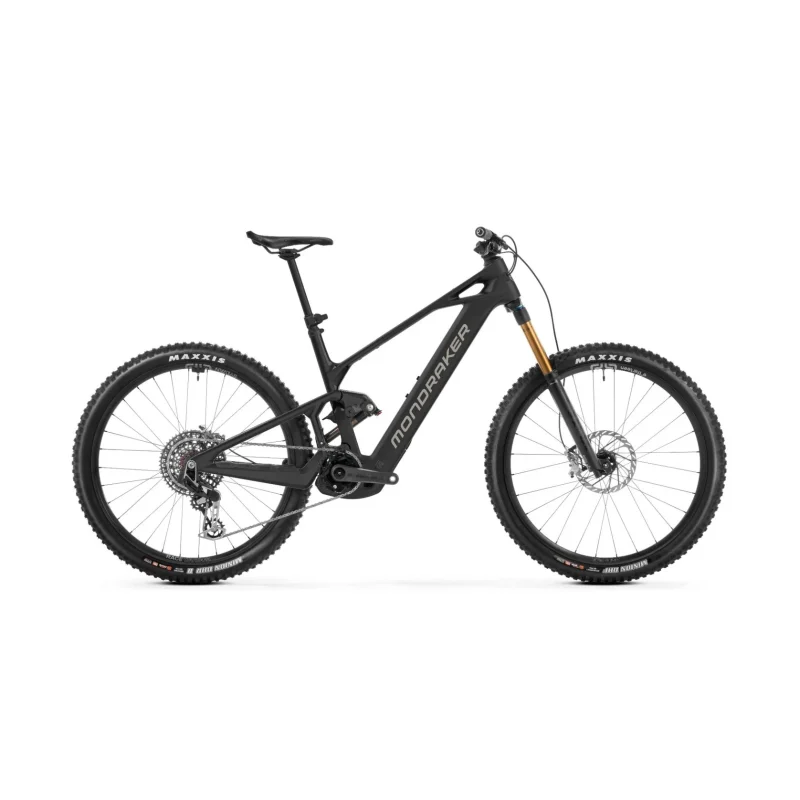

Mondraker Crafty RR SL vs Pivot Shuttle AM
En qué gana Crafty RR SL (1) y dónde se impone Shuttle AM (2) — todas las características lado a lado.
vs
8,7Componentes7,9
7,1Suspensión6,4
¿Por qué Crafty RR SL es mejor que Shuttle AM?
- Gama del grupo (1–5)5/5 vs 4/5+25 %
¿Por qué Shuttle AM es mejor que Crafty RR SL?
- Tipo de frenoFreno de llanta vs Disco hidráulico
- Capacidad de batería600 Wh vs 800 Wh+33 %
Características
Lado a lado
| Marco y talla | ||
| Material del marco | Carbono | Carbono |
| Marco | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monobloc | — |
| Tallas | S, M, M/L, L, XL | S, M, L, XL |
| Colores | — | Blue Dark Sky, Badlands Brown |
| Año del modelo | 2026 | 2026 |
| Uso | Enduro | Enduro |
| Suspensión | ||
| Suspensión | Doble suspensión | Doble suspensión |
| Horquilla | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload | RockShox Lyrik Select+ 29”, 44mm offset, 160mm |
| Recorrido delantero | 160 mm | 160 mm |
| Amortiguador trasero | Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings | RockShox Super Deluxe Select |
| Recorrido trasero | 150 mm | 150 mm |
| Tija telescópica | Sí | — |
| Recorrido de la tija | 200 mm | — |
| Transmisión | ||
| Grupo | XX Eagle Transmission | Eagle 90 Transmission |
| Marca del grupo | SRAM | SRAM |
| Gama del grupo (1–5) | 5/5 | 4/5 |
| Cambios electrónicos | Sí | Sí |
| Velocidades (atrás) | 12 | 12 |
| Platos | 1 | 1 |
| Rango del casete | 10–52T | 10–52T |
| Desviador trasero | Sram XX Eagle AXS, T-Type, 12s | Sram Eagle 90 Mechanical Transmission 12-Speed |
| Mandos de cambio | Sram Eagle AXS Pod MMX, 12s | Sram Eagle 90 Mechanical Transmission 12-Speed |
| Casete | Sram XS-1295, 10-52T, T-Type, 12s | Sram XS-1270 Eagle Transmission 10-52t |
| Bielas | E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm | FSA CK-220/IS Armset 34t - 160mm |
| Frenos | ||
| Tipo de freno | Freno de llanta | Disco hidráulico |
| Frenos | Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece | Sram DB8 Stealth 4-piston |
| Disco delantero | — | 200 mm |
| Disco trasero | — | 200 mm |
| Ruedas y llantas | ||
| Tamaño de rueda | 29″ / 28″ (700c) | 29″ / 28″ (700c) |
| Llantas (neumáticos) | Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 600TPI, folding bead | Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA |
| Ancho de llanta | 64 mm | 64 mm |
| Ruedas | e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes | DT Swiss E532, 30mm - 29” | F - / R - |
| Rines | Carbono | — |
| Tubeless ready | Sí | Sí |
| Sistema eléctrico | ||
| Marca del motor | Bosch | Bosch |
| Motor | Bosch Performance Line CX-R (25Km/h) SMART SYSTEM (BDU384Y) | Bosch Gen 5 Performance CX | Bosch Gen 5 Performance CX-R | Bosch Gen 5 Performance CX-R |
| Posición del motor | Motor central | Motor central |
| Capacidad de batería | 600 Wh | 800 Wh |
| Asistencia hasta | 25 km/h | — |
| Pantalla / mando | Kiox 400c / Bosch Mini Remote / Bosch System Controller | — |
| Equipamiento y componentes | ||
| Tija | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548 | JD YSP23GLS, 130-150mm (SM), 150-170mm (MD), 180-200mm (LG-XL |
| Sillín | Ergon SM-10 | Pivot Ride E-Bike |
| Manubrio | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore | Phoenix Race Low Rise Aluminium - 780mm (SM-MD), 800mm (LG-XL) |
| Potencia | Onoff Krypton FG 30mm, CNC, 31.8mm barbore | Phoenix Team Enduro/Trail - 45mm |
