- Dune RR vs Shuttle SL AM

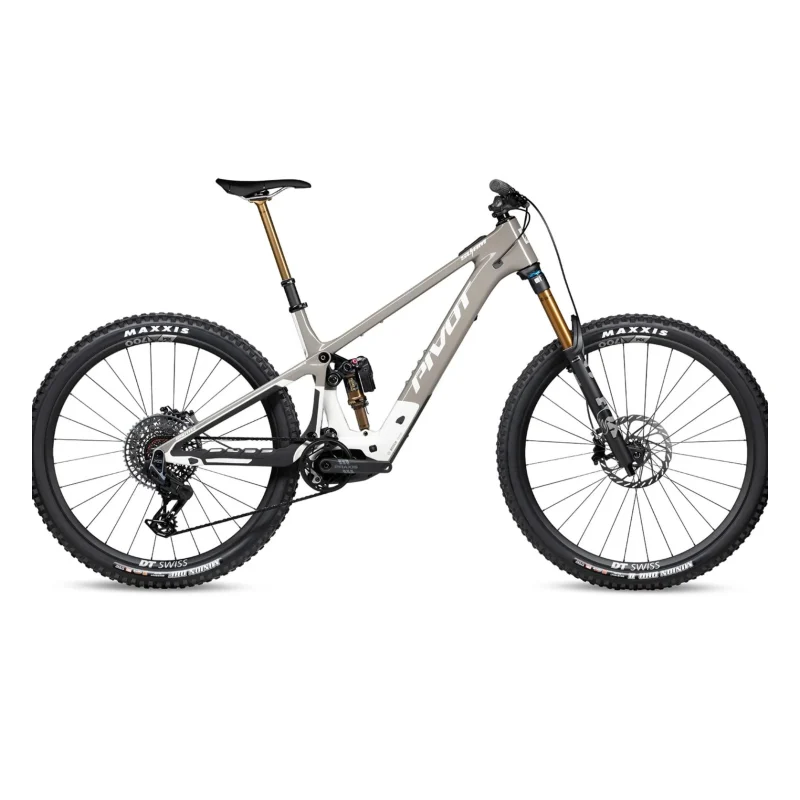

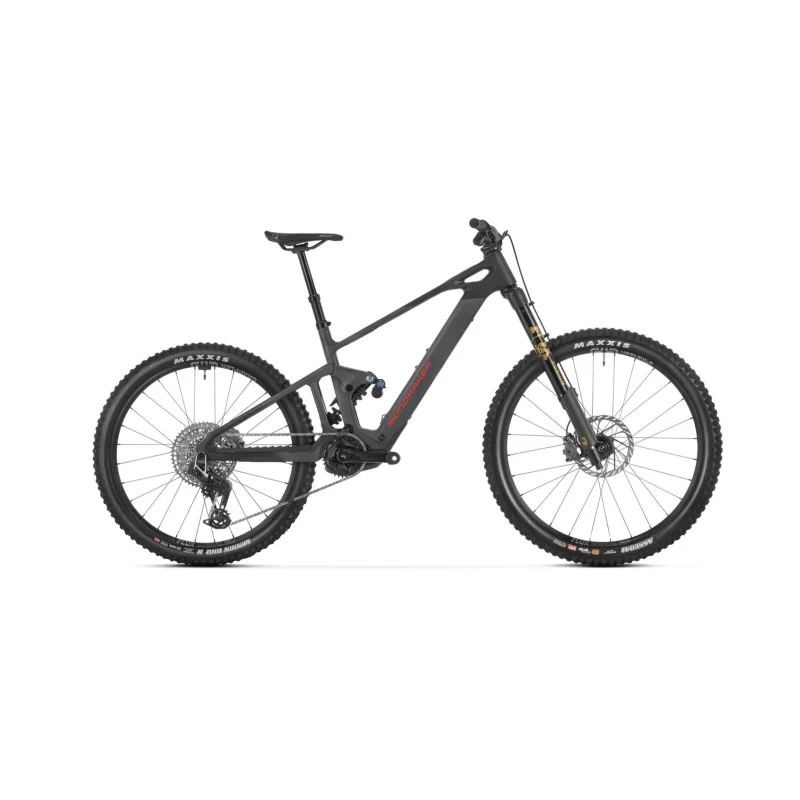

Mondraker Dune RR vs Pivot Shuttle SL AM
En qué gana Dune RR (2) y dónde se impone Shuttle SL AM (2) — todas las características lado a lado.
vs
5,9Componentes9,3
9,0Suspensión7,1
¿Por qué Dune RR es mejor que Shuttle SL AM?
- Recorrido trasero165 mm vs 150 mm+10 %
- Recorrido delantero170 mm vs 160 mm+6 %
¿Por qué Shuttle SL AM es mejor que Dune RR?
- Tipo de frenoFreno de llanta vs Disco hidráulico
- Gama del grupo (1–5)4/5 vs 5/5+25 %
Características
Lado a lado
| Marco y talla | ||
| Material del marco | Carbono | Carbono |
| Marco | Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock | — |
| Tallas | S, M, L, XL | S, M, L, XL |
| Colores | Black/Gray/Red | Brownstone, Grey Gloss |
| Año del modelo | 2026 | 2026 |
| Uso | Trail | Enduro |
| Suspensión | ||
| Suspensión | Doble suspensión | Doble suspensión |
| Horquilla | Fox Podium 29 GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload | Fox Factory 36 29”, 44mm offset, GRIP X2 - 160mm |
| Recorrido delantero | 170 mm | 160 mm |
| Amortiguador trasero | Fox DHX2 Factory Kashima, 205x65mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings | Fox Factory Float(XS), Fox Factory Float X (SM-XL) |
| Recorrido trasero | 165 mm | 150 mm |
| Tija telescópica | Sí | Sí |
| Recorrido de la tija | 235 mm | 210 mm |
| Transmisión | ||
| Grupo | X0 Eagle Transmission | XX Eagle Transmission |
| Marca del grupo | SRAM | SRAM |
| Gama del grupo (1–5) | 4/5 | 5/5 |
| Cambios electrónicos | Sí | Sí |
| Velocidades (atrás) | 12 | 12 |
| Platos | 1 | 1 |
| Rango del casete | 10–52T | 10–52T |
| Desviador trasero | Sram X0 Eagle AXS T-Type,12s | Sram XX Eagle Transmission 12-Speed |
| Mandos de cambio | Sram Eagle AXS Pod MMX, 12s | Sram AXS Pod Controller |
| Casete | Sram XS-1275, 10-52T, T-Type, 12s | Sram XX 1297 Eagle Transmission 10-52t |
| Bielas | E.13 Helix Race Alloy E*Spec Plus, All sizes: 160mm | Praxis Carbon eCranks E-MTB 34t - 160mm |
| Frenos | ||
| Tipo de freno | Freno de llanta | Disco hidráulico |
| Frenos | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece | Sram Motive Ultimate 4-piston |
| Disco delantero | — | 200 mm |
| Disco trasero | — | 200 mm |
| Ruedas y llantas | ||
| Tamaño de rueda | Mixta 29″/27,5″ | 29″ / 28″ (700c) |
| Llantas (neumáticos) | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA |
| Ancho de llanta | — | 64 mm |
| Ruedas | e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes | Reynolds Blacklabel Trail Pro w/ Industry Nine hub, 32mm | F - / R - | XS (Mixed Wheel only), SM-XL (29” only) |
| Rines | Aluminio | — |
| Tubeless ready | Sí | Sí |
| Sistema eléctrico | ||
| Marca del motor | Bosch | Bosch |
| Motor | Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide | Bosch Performance SX 400Wh | Bosch Performance SX 400Wh | Bosch Performance SX 400Wh |
| Posición del motor | Motor central | Motor central |
| Capacidad de batería | 400 Wh | 400 Wh |
| Asistencia hasta | 25 km/h | — |
| Pantalla / mando | Kiox 400 / Bosch Mini Remote | — |
| Equipamiento y componentes | ||
| Tija | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L | Fox Transfer Factory Series 125-150mm (XS-SM), 155-180mm (MD), 185-210mm (LG-XL) |
| Sillín | Ergon Enduro SPS20 | Phoenix WTB Team High Tail Trail (SM), Phoenix RaceGrip Team Saddle (XS, MD-XL) |
| Manubrio | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise. | Phoenix Race Low Rise Carbon -760mm (XS), 780mm (SM-MD), 800mm (LG-XL) |
| Potencia | Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore | Phoenix Team Enduro/Trail - 45mm |
